Product Description
Surge Elimination & Power Conditioner
Advanced Series Mode® Surge Elimination

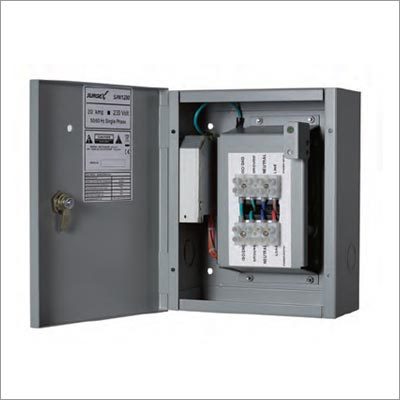

The XYN1230 provides guaranteed surge elimination for dedicated power lines. The unit comes in a 12 x 12 x 4 NEMA enclosure and meets code for use in celling plenums. The SXN 1230 is 20-ampload capable and is specifically designed for international use in 230 volt systems with single phase power requirements. The standard model has one usrge elimination module. The until features both common mode and normal mode impedance Tolerant EMI/RFI filtering for a comprehensive power conditioning solution.
Impedance Tolerant® EMI/RFI Filtering
SurgeX Advanced Series Mode technology is superior to conventional MOV cirucultry or MOV Hybrid designs and is completely non sacrifical. Our zero let through technology provides the most reliable protection available. It stops all surges up to 6000 volts (unlimited surge current) without producing harmful side effects such as ground contamination or common mode disturbances.
Surge Eliminator & Power Conditioner
Advanced Series Mode* Surge Protection
Specifications
Load Rating: 30 amps @ 230 volts (single phase) Power
Power Requirement (no load): 3 watts
Surge Let Through Voltage (6000 volt surge): 0 volts
ICE/EN: 61643-1.
Performance Rating: Grade A, Class 1, Mode 1
EMI/RFI Filter, Normal Mode (50 ghm load): 40dB @ 100 kHz, 50 dB @ 300 kHz; 50 dB @ 3 Mhz, 50 dB @ 30 Mhz
EMI/RFI Filter, Common Mode (50-lhm load): 18dR @ 300 kHz; 30 dB @ 1MHz, 50 dB @ 5 Mhz, 50 dB @ 20 Mhz
Maximum Applied Surge Voltage: 6000 volt*
Maximum Applied Surge Current: Unlimited, due to current limiting*
Maximum Applied Surge Energy:Unlimited, due to current limiting*.
Endurance (C62.41-1991 Category 8. pulses): 1 kV>500000; 3kV-10000, 6kV> 1000
Dimensions: 25.4 x 20.3 x 10.7 cm (10.0� H x 80� W x 4.0� D)
Weight: 4.5 Kg (10 lbs)
Temperature Range: 5o to 35oC
Humidity Range: 5% to 95% R.H., non-condensing. *1.2 x 50 us pulse, industry standard combination wave surge as per IEEE C62.41.
Technical Description
The SXN 1230 shall be housed in a magnetic shielding NEMA steel enclosure for interior installation. It shall operate from 230 volts AC and have a barrier strip accessible through knock-outs in the enclosure for hardwiring power input and output connections. Overall dimensions shall be 10.0� H x 8.0� W x 4.0� D. Weight shall be 4.5 Kg / 10.0 pounds. The SXY 1230 shall have a laod rating of 20 amps at 230 volts, a self text circuit with visual indicator and provide EMI / RFI filtering. it shal meet Grade A, Class 1, Mode 1 guidelines for pwer line surge supressors and withstand at least 1000 occurrence of surge pulse voltage up to 6000 volts. The SXN 1230 shall be tested and certified to IEC / EN 61643-1.
Features
Magnetic shielding steel enclosure
Advanced Series Mode surge protection
Advanced impedance Tolerant EMI / RFI filtering
Self-test circuit with visual indication
10-year warranty.
