Product Description
HD Scope

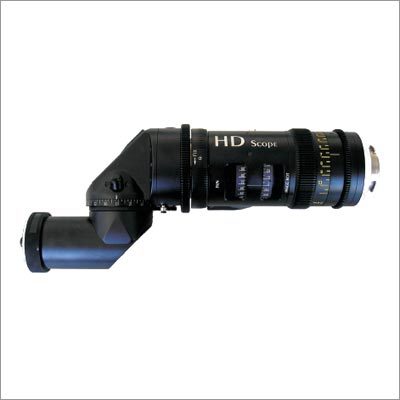

Introducing the HD Scope
The first Borescope/Snorkel lens system designed for B4-Mount HD cameras.
Don't settle for large, slow, outdated & user-friendly Borescope systems on your next Hi-Def video shoot !
Up until now, Barescope / Snorke lens systems were designed to produce on image for 35 mm cameras. The HD Scope was created specifically for product high resolution image for 2/3 sensor video cameras using the finest glass available.
And, as we all know it's all about the glass !
The HD Scope was designed by the creator of the cinec award winning T-Rex lens system, and is manufactured by IB/E OPTICS in Germany, Only optical components of superior quality are used in the construction of the HD Scope and its compliment of 10 available lenses ranging from 4.2 mm – 26 mm. the HD Scope intercuts beautifully with Digi-Primes.
Tight spaces and product shots are no obstacie for the HD Scope.
The front head rotates 360o while maintaining the horizon. Pan across the face of a watch or position HD Scope as a Snorke!, point it through a car's sunroof and pan 360o around the interior without moving the camera. Put a motor on the image rotation gear ring and rotate the image 360o in shot.
Want complete remote control over the lens ? The focus, image rotation pan and iris functions all have 32 pitch gear rings for connecting motors. All of the HD Scope functions have large, easy to read scales.
Barescope / Snorkellens systems of the post are notoriously slow lenses requiring many lights and complicated set-ups. The fast 4.0 T-Stop of the HD Scope gives the...
Technical Data
| Length – front Lens to Manual: | 365/14.4 inches | Resolution: | 1920 x 1080 |
| Max. Diameter: | 90 mm / 3.5 inches | Range of Focus: | Macro-infinity |
| Weight: | 3900g / 8.1 lbs. | Lens Complient: | 10 Lenses 4.2-26mm |
| Aperture: | T4.0 | Range of Image Rotation: | 360o |
| Camera Mount: | B4 | Range of Panning: | 360o |
| Lens Mount: | HD Scope | External Gears: | .32 Film Potch |
