Product Description

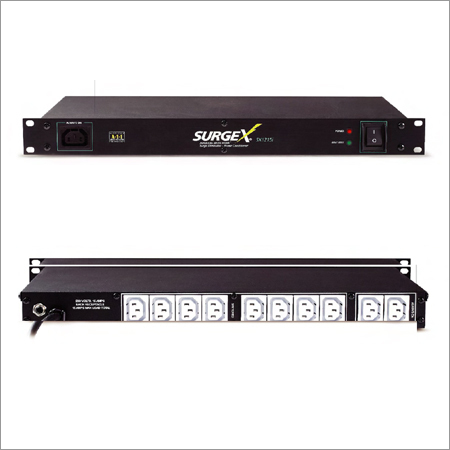

Advanced Series Power Conditioner
Advanced Series Mode* Surge Protection
Specifications
Load Rating: 30 amps @ 230 volts (single phase) Power
Power Requirement (no load): 3 watts
Surge Let Through Voltage (6000 volt surge): 0 volts
ICE/EN: 61643-1.
Performance Rating: Grade A, Class 1, Mode 1
EMI/RFI Filter, Normal Mode (50 ghm load): 40dB @ 100 kHz, 50 dB @ 300 kHz; 50 dB @ 3 Mhz, 50 dB @ 30 Mhz
EMI/RFI Filter, Common Mode (50-lhm load): 18dR @ 300 kHz; 30 dB @ 1MHz, 50 dB @ 5 Mhz, 50 dB @ 20 Mhz
Maximum Applied Surge Voltage: 6000 volt*
Maximum Applied Surge Current: Unlimited, due to current limiting*
Maximum Applied Surge Energy:Unlimited, due to current limiting*.
Endurance (C62.41-1991 Category 8. pulses): 1 kV>500000; 3kV-10000, 6kV> 1000
Dimensions: 25.4 x 20.3 x 10.7 cm (10.0� H x 80� W x 4.0� D)
Weight: 4.5 Kg (10 lbs)
Temperature Range: 5o to 35oC
Humidity Range: 5% to 95% R.H., non-condensing. *1.2 x 50 us pulse, industry standard combination wave surge as per IEEE C62.41.
Technical Description
The SXN 1230 shall be housed in a magnetic shielding NEMA steel enclosure for interior installation. It shall operate from 230 volts AC and have a barrier strip accessible through knock-outs in the enclosure for hardwiring power input and output connections. Overall dimensions shall be 10.0� H x 8.0� W x 4.0� D. Weight shall be 4.5 Kg / 10.0 pounds. The SXY 1230 shall have a laod rating of 20 amps at 230 volts, a self text circuit with visual indicator and provide EMI / RFI filtering. it shal meet Grade A, Class 1, Mode 1 guidelines for pwer line surge supressors and withstand at least 1000 occurrence of surge pulse voltage up to 6000 volts. The SXN 1230 shall be tested and certified to IEC / EN 61643-1.
Features
Magnetic shielding steel enclosure
Advanced Series Mode surge protection
Advanced impedance Tolerant EMI / RFI filtering
Self-test circuit with visual indication
10-year warranty.
